Turnkey Magnetic Assemblies

Integrated magnetic assembly programs combining precision metal carriers, magnet integration, balancing checks, and compliance-document workflow support through qualified partner execution.

Core bottleneck: Robotics and motor OEM teams face procurement friction from high-temperature magnet scarcity and export-control complexity.

Turnkey Magnetic Assemblies - Magnetic Domain

Claim Boundaries

Linkup provides machining and engineering workflow support; final regulatory approvals remain with the competent authority.
Certification-sensitive references are project context only and do not imply certification ownership unless explicitly documented.
Performance statements are valid only under the test/inspection method defined in the RFQ acceptance criteria.

Manufacturable Scope

Carrier and housing machining with datum strategy for magnet stack-up accuracy
Magnet integration workflow with retention and balancing-oriented process planning
Inspection and compliance-document package planning before release
Supplier identity confidentiality with process-verified capability routing
NdFeB program coverage planning across grade window, coating route, and magnetization orientation control

Representative Part Scope

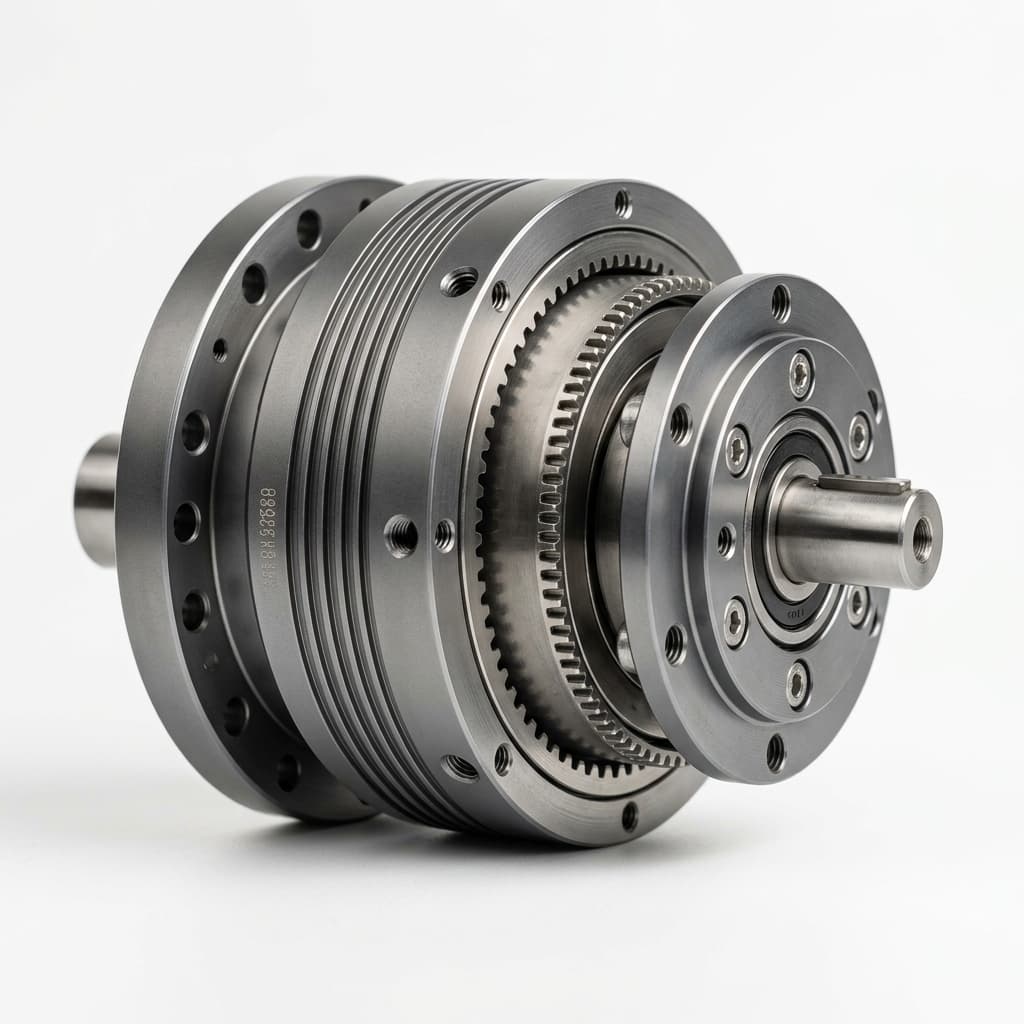

BLDC rotor sleeves and magnet pocket carriers
Outer-rotor magnetic cups and retention rings
Actuator-joint magnetic carriers and locator structures

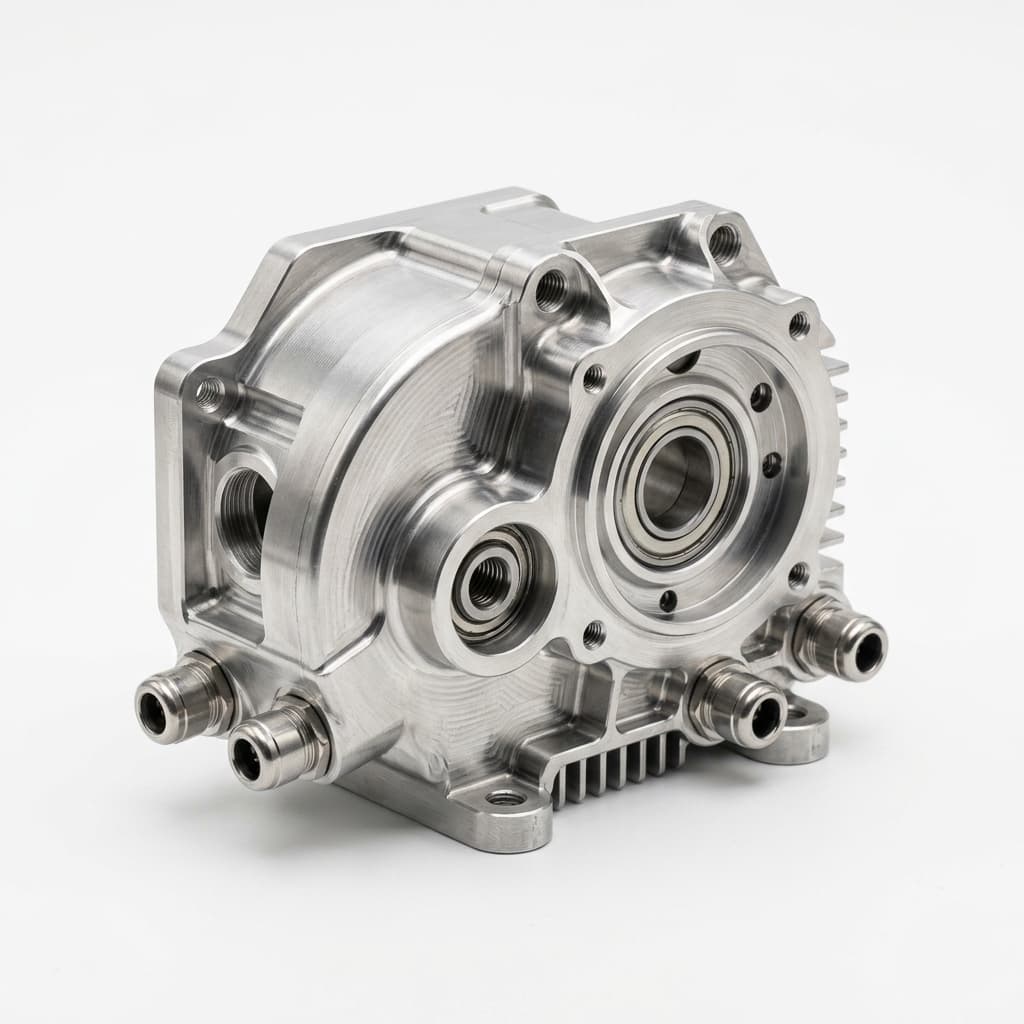

Stator-side bonding fixtures and interface housings
Segmented NdFeB insert sets with coating-route and orientation-map requirements

Proof Checkpoints

Material grade window and magnetization orientation are locked at RFQ with drawing revision control
CMM checks on magnet-seat datums, concentricity, and runout are defined before assembly release
Dynamic balancing target path (for example ISO 21940 G2.5/G6.3 by application) is agreed before pilot sign-off
Upstream capability coverage includes grade-window control, coating-route selection, magnetization flow, and bonded assembly release records

Materials & Process Focus

NdFeB grade class selection (for example SH/UH classes) aligned to thermal envelope
Retention strategy under vibration and thermal cycling conditions
Rotor runout and balance-path planning across pilot and repeat batches
Coating-route compatibility and bonded-interface process stability

Evaluation Matrix

Metric	Typical Range	Why It Matters
Balance-path readiness	Target grade and test speed defined before pilot release	Unclear balancing targets create late-stage redesign and validation delays.
Inspection deliverable completeness	CMM + balance + material/cert pack per RFQ scope	Complete inspection packs reduce procurement and QA approval cycle time.

RFQ Checklist

Specify magnet grade class, max operating temperature, and demagnetization margin targets
Provide carrier/housing datums, concentricity or runout limits, and adhesive constraints
Define balancing acceptance target (for example G2.5/G6.3) and test speed
List required shipment documents: CoC, material certs, inspection pack, and destination compliance docs

Risk Controls

Rotor performance drift from unclear magnet and temperature assumptions: Lock magnet class and operating envelope in RFQ before DFM and tooling release.
Bonding or corrosion issues from late coating-route decisions: Freeze coating route and adhesive compatibility checks before pilot lot kickoff.
Pilot acceptance achieved but production handoff lacks required documentation: Freeze the deliverable pack (reports, certs, compliance docs) as a pre-ship gate.

Buyer FAQ

Can you ship with a complete inspection and document package?

Yes. Scope can include CMM records, balancing results, material certificates, and destination-specific compliance-document routing defined in RFQ.

Can we start with housing-only machining before full assembly?

Yes. Projects can start with housing-only scope and expand to integrated assembly workflow when ready.

Magnetic Program Evidence Asset Kit

Evidence assets below are used to align engineering, QA, and sourcing before pilot and pre-ship release.

Inspection Report Preview

Field	Sample Value	Why It Exists
Drawing revision	LP-ROT-247 Rev.C	Prevents pilot and production from running mixed revisions.
Magnet class window	N42SH (approved alternates: N40UH)	Locks thermal envelope assumptions before DFM release.
Runout / concentricity CTQ	Runout <= 0.02 mm @ datum A/B	Keeps rotor behavior inside assembly acceptance boundaries.
Balance-path target	ISO 21940 target path: G2.5 @ 6000 rpm	Defines release criteria before pilot sign-off.
Measurement method	CMM + dynamic balancing record	Creates auditable evidence for buyer QA approval.

Shipment Document Pack

CMM dimensional report for CTQ features and datum references
Dynamic balancing result record with speed/condition notes
Material certificate and CoC package per RFQ scope
Pre-shipment inspection summary with lot traceability
Destination compliance-document routing checklist

Acceptance Flow

Gate 1 - RFQ lock: Grade window, drawing revision, runout CTQ, and balance target are frozen.
Gate 2 - Pilot verification: CMM and balancing outputs are reviewed against acceptance values.
Gate 3 - Pack freeze: Shipment document pack is confirmed before production release.
Gate 4 - Pre-ship release: Lot traceability and final QA summary are checked before dispatch.

Downloadable RFQ Templates

Magnetic RFQ Input Template (CSV)

Required RFQ inputs for grade window, CTQ datums, balance criteria, and project timing.

Download template

Document Pack Checklist Template (CSV)

Pre-ship document checklist for CMM, balancing records, certificates, and compliance routing.

Download template

Acceptance Gates Template (Markdown)

Gate-by-gate acceptance structure from RFQ lock through pilot and pre-ship release.

Download template

Related Resources

Related Technical Briefs

Decision-focused articles aligned to this page's component scope and sourcing risks.

Turnkey Magnetic Assembly Validation Playbook

Validation framework for grade-window lock, runout controls, balance-path acceptance, and shipment document packs.

Read technical brief

Start DFM Intake

Upload your STEP file for a 24-hour manufacturability review.

Upload STEP for DFM review

If CAD is not ready, use direct engineering contact below as fallback.

Inquiry Email

[email protected]

Email app

Instant Chat

+8618857971991

Chat on WhatsApp

Direct response from our engineering team.
