Soft Magnetic Composite Motor Core Route

Program-level route planning for SMC-oriented motor-core geometries in robotics drives where 3D flux paths and compact packaging are key.

Core bottleneck: Advanced robotics motor teams exploring SMC-like core structures lack clear manufacturability boundaries and execution pathways.

Soft Magnetic Composite Motor Cores - Robotics Domain

Claim Boundaries

Linkup provides machining and engineering workflow support; final regulatory approvals remain with the competent authority.
Certification-sensitive references are project context only and do not imply certification ownership unless explicitly documented.
Performance statements are valid only under the test/inspection method defined in the RFQ acceptance criteria.

Manufacturable Scope

SMC-oriented design suitability framing for compact robotic motor architectures
Execution model combining machined interfaces and qualified partner process routing
Boundary-driven comparison against conventional laminated-core approaches

Representative Part Scope

Compact motor-core geometry classes for robotic joints
Stator-adjacent structural interfaces and housings
Core carrier and alignment features for pilot builds
Integrated motor-module support parts in actuator stacks

Proof Checkpoints

Route decision table documents geometry-fit assumptions and exclusions
Assembly-critical interfaces retain machining verification checkpoints
Comparison blocks include condition-bound assumptions, not blanket superiority claims

Materials & Process Focus

Geometry-class fit assessment before route commitment
Packaging and interface compatibility with robotic actuator structures
Validation planning across prototype and pilot milestones

Scope Boundaries

SMC-oriented route discussion is bounded to geometry/process suitability and does not imply universal motor efficiency gains.
Core process execution claims are qualified when partner routing is used.
System-level electromagnetic outcomes remain dependent on full motor design architecture and test setup.

Process Fit Matrix

Decision Axis	CNC-First Route	Transition Route	Use Rule
Geometry complexity and 3D flux path ambition	Lamination/CNC-adjacent iteration for early architecture uncertainty	SMC-oriented route exploration for compact 3D geometry classes	Use transition path when geometry benefits are explicit and measurable.
Interface tolerance criticality	Machining-first for high-precision assembly datums	Transition for non-datum core-body classes with validated boundaries	Protect assembly-critical interfaces with machining verification gates.
Program maturity	Best for rapid concept iteration and frequent redesign	Best after architecture freeze and pilot validation plan approval	Do not route-lock before acceptance criteria and fallback plans are signed off.

Evaluation Matrix

Metric	Typical Range	Why It Matters
Geometry-fit clarity	In-scope vs out-of-scope classes declared before pilot	Unclear geometry fit causes false starts and delays in motor development cycles.
Interface verification coverage	Critical assembly datums verified by defined inspection path	Motor-core route shifts still fail if adjacent precision interfaces are unmanaged.

RFQ Checklist

Provide core geometry concept and key envelope constraints
Specify electrical/mechanical performance targets used in route assumptions
Define interface datums requiring machining-grade control
List pilot decision timeline and acceptance package expectations

Risk Controls

Implying universal efficiency gains from SMC routes: Constrain comparisons to scenario-based assumptions and system context provided by customer teams.
Ambiguous process-ownership statements: Explicitly separate machining/integration scope from partner-executed process scope.

Buyer FAQ

Are SMC-oriented motor cores always better than lamination stacks?

No. Suitability depends on geometry, operating profile, packaging constraints, and validation priorities.

Can you support execution if our program is still in architecture exploration?

Yes. We can support route screening and pilot feasibility definition before production commitment.

Program Gallery

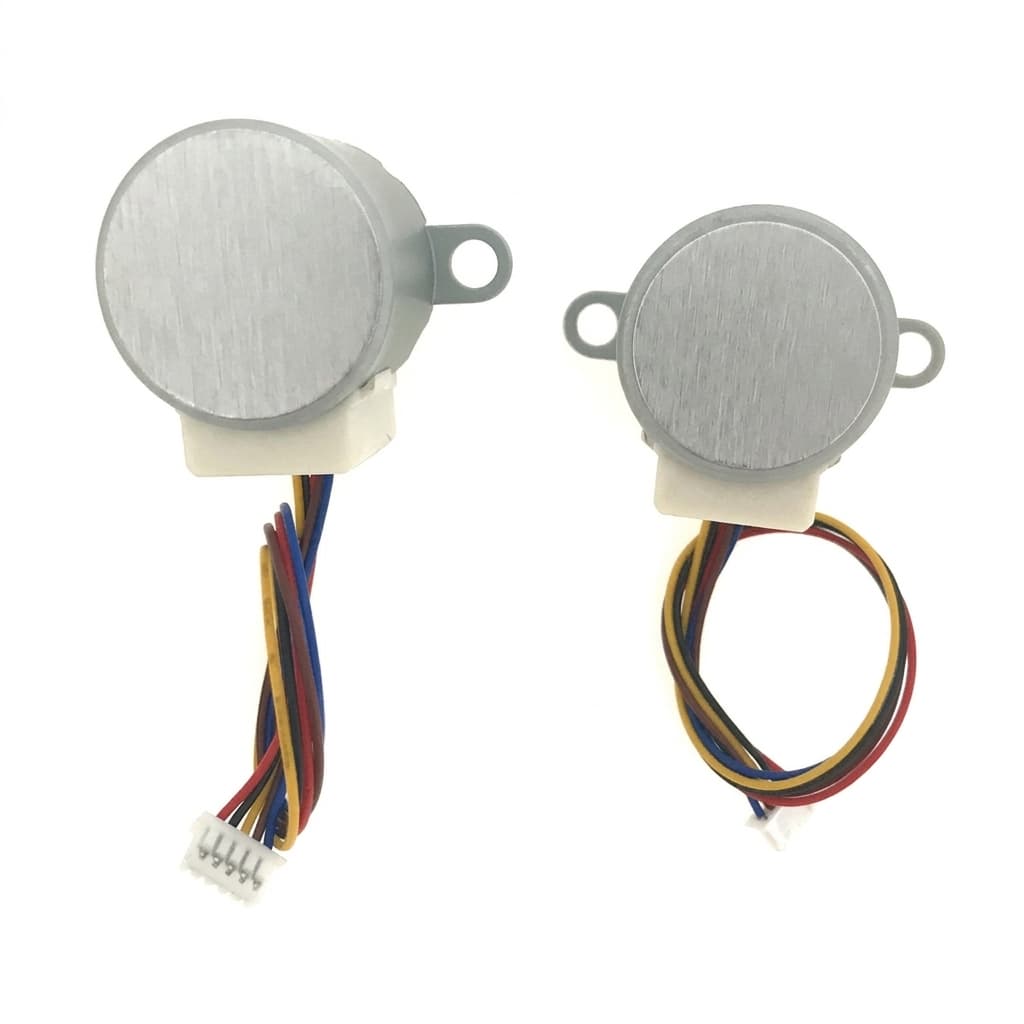

Soft Magnetic Composite Motor Cores - Stepper 24v Dc Step Motor

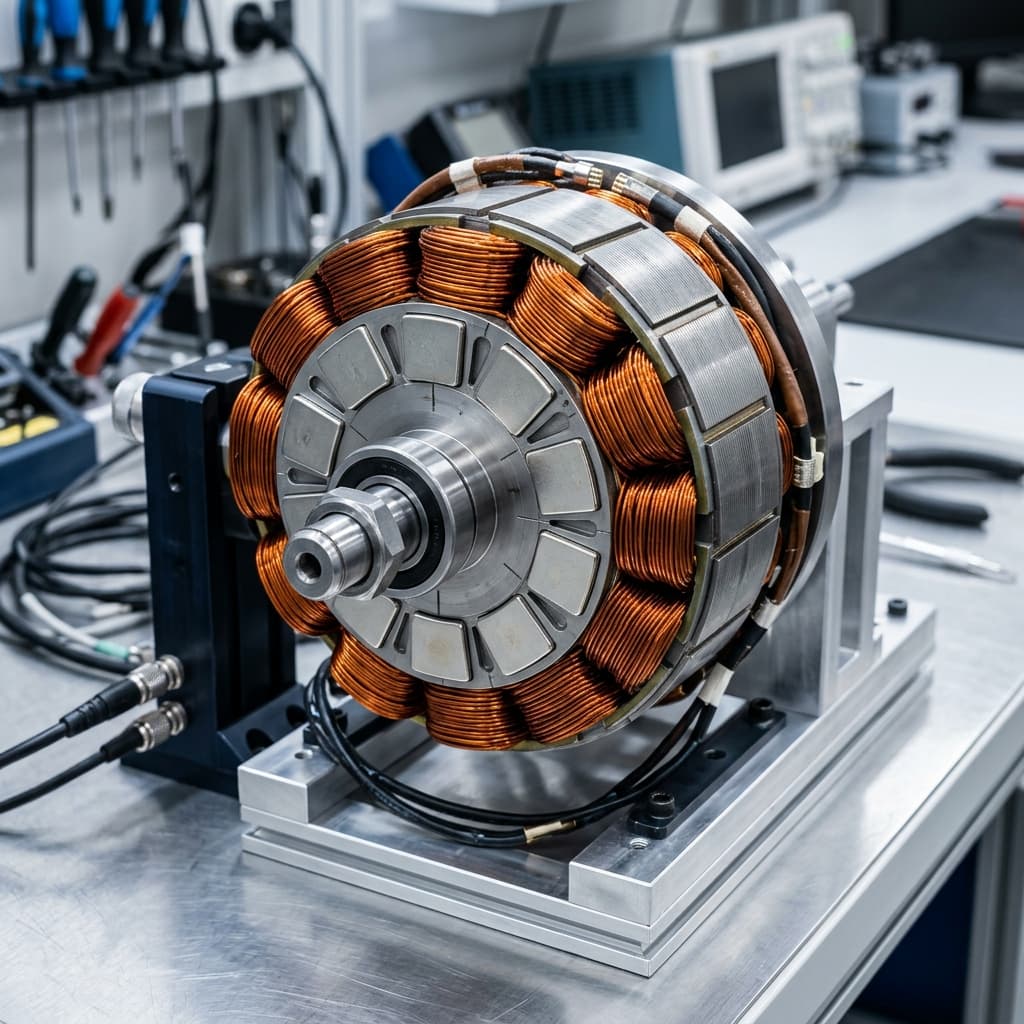

Soft Magnetic Composite Motor Cores - Magnetic Domain
