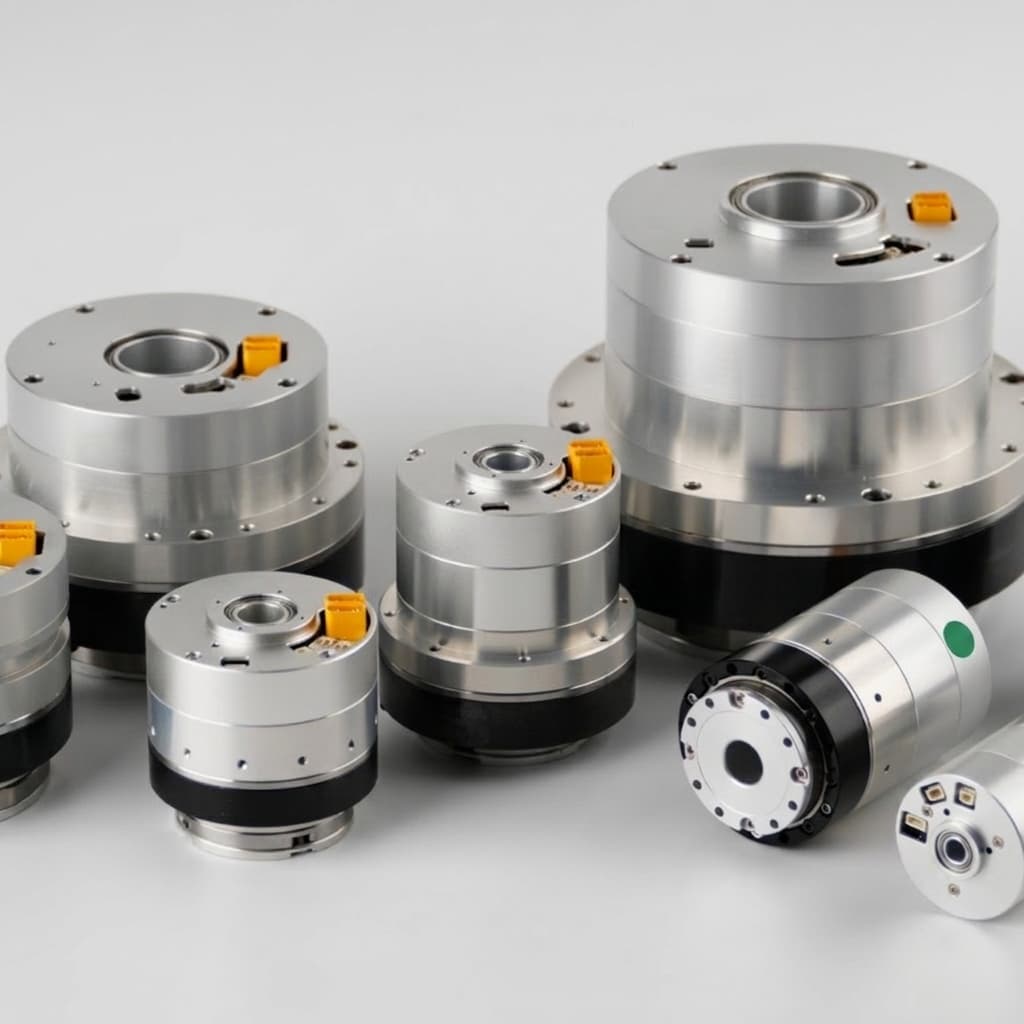

A customer-style robotics actuator batch where drawing interpretation mattered as much as machining speed.
Core bottleneck: The project included multiple similar parts, fit classes, coaxiality requirements, and fine-thread risk that could not be handled like a simple upload-and-cut job.
Automated quote workflows can be useful for simple geometry. These projects need someone to read the drawing, understand the assembly, and carry critical details into the manufacturing route.
Multiple actuator-related components arrived with STEP and PDF drawing context.
Critical features, thread risks, and similar-part differences were translated into factory instructions.
The sample route carried CTQ and mix-up warnings into machining and inspection planning.
The case created a reusable model for future robotics actuator RFQs.
| Risk | Control |
|---|---|
| Factory treats similar variants as the same part | Add explicit mix-up warnings and revision-controlled part descriptions. |
| Fine thread fails during machining | Flag nonstandard pitch, bottom-hole diameter, depth, and tool-breakage risk. |
| Fit class or coaxiality is not prioritized | Call out H7/h7, k6, and datum-linked runout as CTQ inspection items. |
Owns proof/case-study intent and supports rapid CNC, DFM, robotics, and actuator housing pages.
robotics actuator CNC case study, rapid CNC prototype case study, engineer reviewed DFM case study
H7 h7 machining case, fine thread CNC prototype, robotics rotor housing machining
No. This proof case is anonymized unless explicit customer permission is granted.
No proprietary drawings or dimensions are published. The case uses sanitized engineering themes.
It shows why complex prototype work needs human drawing interpretation before fast manufacturing execution.
Upload CAD and drawings for a one-business-day first response when the RFQ package is complete. We review manufacturing risk before quote direction and partner-route planning, rather than issuing blind automated pricing.
Typical 5-9 working day CNC sample timing applies only after scope, material, inspection, partner route, and schedule are qualified. Pilot support is scoped separately after prototype assumptions are clear.
